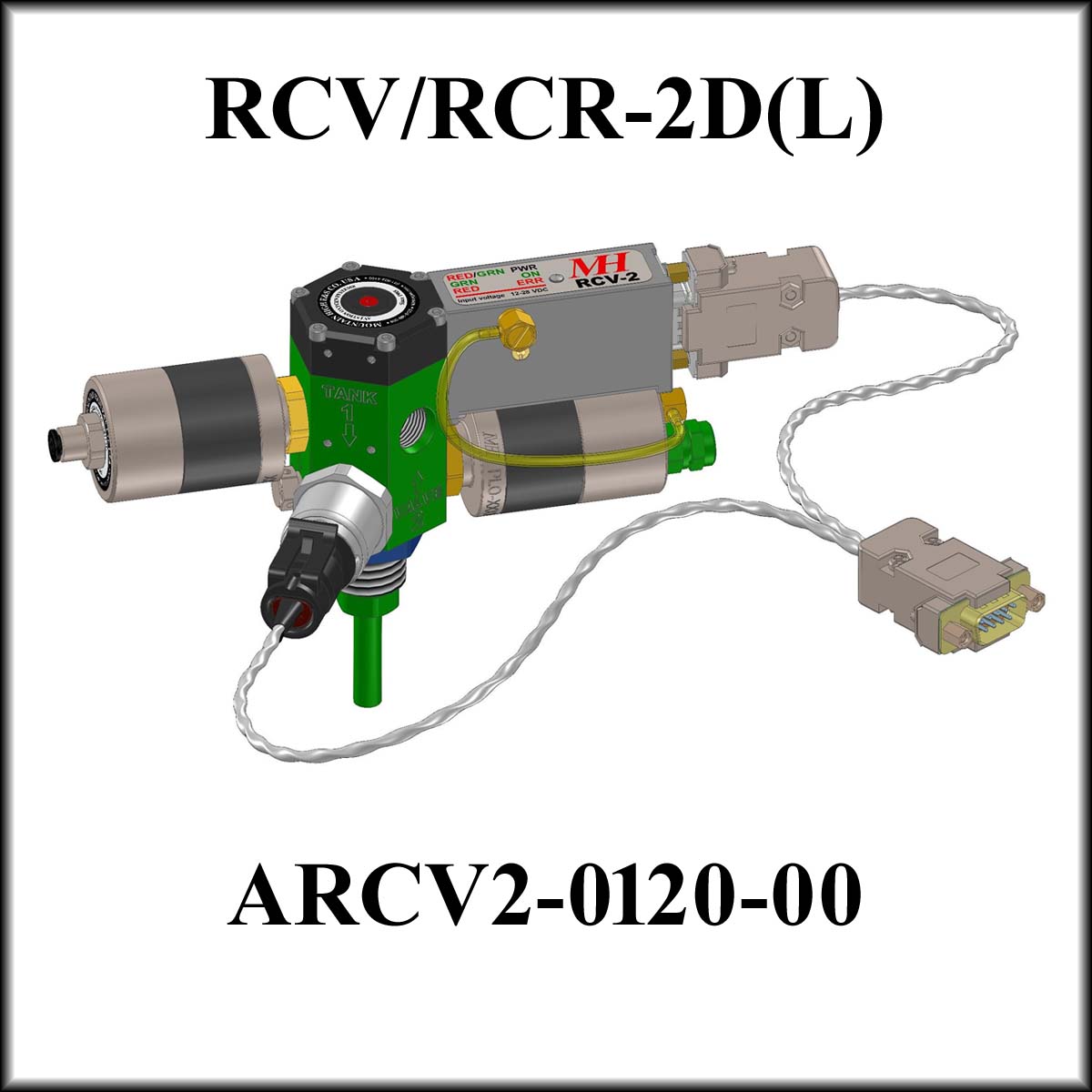

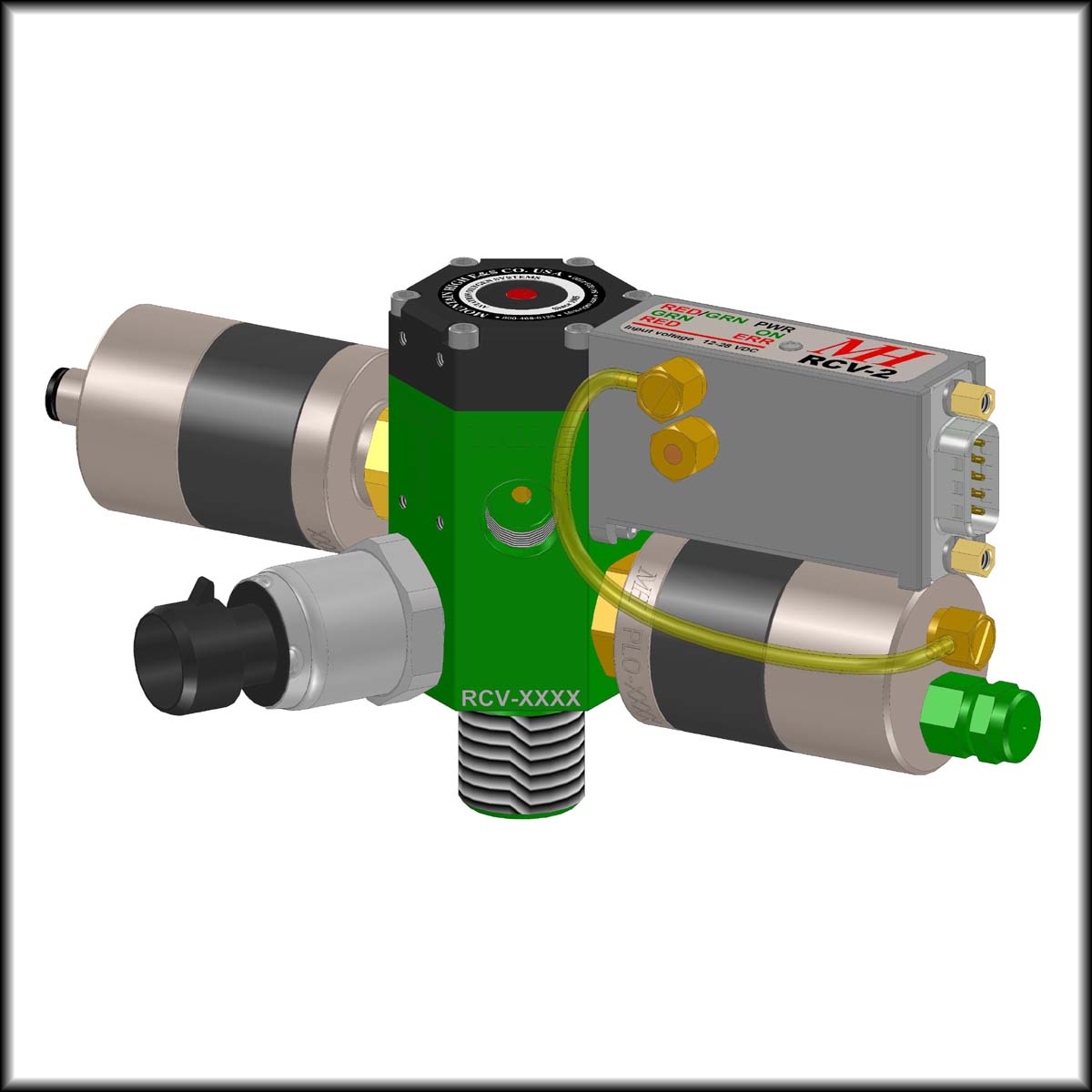

The Remote-Controlled Valve/ Remote-Controlled Regulator (RCV/RCR), is designed for when a dependable permanent remote-mount installation is required. The RCV/RCR can be installed either onto the end of a cylinder or remote mounted on a bulkhead, downstream from the cylinder, if space is an issue. The RCV/RCR-2DL is compatible with either 14v or 28v applications utilizing very little power (~20ma) in the “ON” position, wired to a 3 to 5 amp breaker. The 2-stage RCR provides 42 liters per minute (lpm) of O2 flow volume at 18 psi dynamic. Enough oxygen flow for up to 8 places. The RCV can accommodate a second 2-stage RCR, allowing the combination to work for a 16-person installation. The RCV/RCR can be installed onto any aluminum, Kevlar, carbon and silica-glass composite cylinders that have a standard 3/4″-16 outlet thread, all of which we carry.
Our reducing adapter allows you to use the 3/4-16 UNF valve or other fitting in a steel tank that uses the 1in NGT taper thread. PN: 00HDW-0364-00
The High Pressure/High flow regulator can also be installed to the RCV/RCR as an option.
