Fill Ports

Built-in: Fill Ports

We have the remote oxygen fill-stations and hardware to allow you to design your system with the most exacting specifications and needs. Our integrated fill-stations feature the Swagelok system for the best seal between tubing and fitting. They also have SAE straight-thread with o-ring ports that allow for the most dependable seal.
NOTE:  The items on the below pages are not certified nor do they carry a PMA.
Any application on a certified Aircraft would require a field approval.

Fill Ports (List View)

ImageSKUNameSummaryPriceBuy
1/8 NPTM to AN-800-3 (MS22066) fill valve
00BLT-1008-001/8 NPTM to AN-800-3 (MS22066) fill valve

Replacement fill check valve

$50.00
SAE-4 to AN-800-3 (MS22066) fill valve
00BLT-1010-00SAE-4 to AN-800-3 (MS22066) fill valve

SAE-4-to-AN-800-3-adapter

$98.00
SAE-4 to Scott 9/16-18 fill valve
00BLT-1012-00SAE-4 to Scott 9/16-18 fill valve

SAE to Scott (26875) fill adapter
AKA airline (AS1219)

$89.00

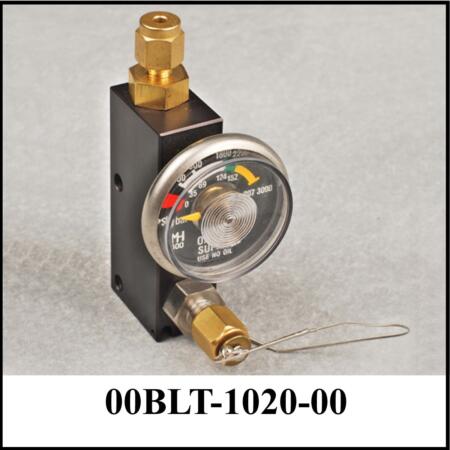

Fill Port Deluxe-compression fitting
00BLT-1020-00Fill Port Deluxe-compression fitting

Deluxe fill station with gauge

$295.00
Fill Port Deluxe-JIC outlet
00BLT-1020-1Fill Port Deluxe-JIC outlet

Deluxe fill station with gauge

$275.00

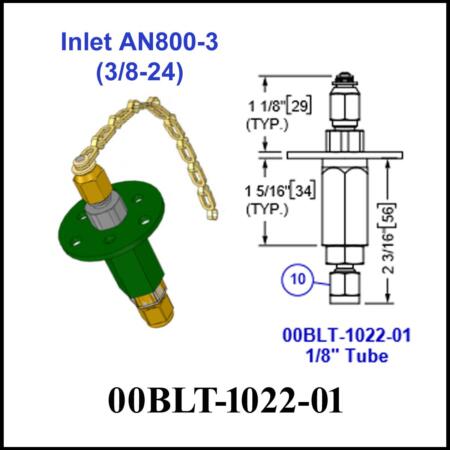

Fill port AN800-3 B.H. fill x 1/8 tube
00BLT-1022-01Fill port AN800-3 B.H. fill x 1/8 tube

AN800-3 B.H. fill x 1/8 OD compression copper tube.
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$225.00
Fill port AN800-3 B.H. fill x 3/16 tube
00BLT-1022-02Fill port AN800-3 B.H. fill x 3/16 tube

AN800-3 B.H. fill x 3/16 OD compression copper tube.
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$209.00
Fill port AN800-3 B.H. fill x -4 m flare
00BLT-1022-03Fill port AN800-3 B.H. fill x -4 m flare

AN800-3 B.H. fill x JIC -4 flare
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$199.00
Fill port AN800-3 B.H. Fill X AN800-3
00BLT-1022-04Fill port AN800-3 B.H. Fill X AN800-3

AN800-3 B.H. Fill X AN800-3
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$189.00
Fill port SCOTT (26875) B.H. fill x 1/8 tube
00BLT-1024-01Fill port SCOTT (26875) B.H. fill x 1/8 tube

Scott B.H. fill x 1/8 OD compression copper tube.
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$225.00
Fill port SCOTT (26875) B.H. fill x 3/16 tube
00BLT-1024-02Fill port SCOTT (26875) B.H. fill x 3/16 tube

For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$209.00

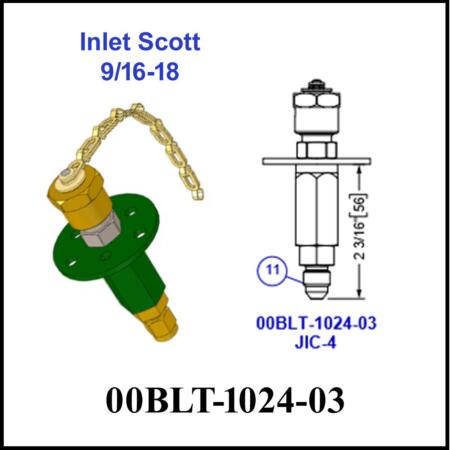

Fill port SCOTT (26875) B.H. fill x -4 m flare
00BLT-1024-03Fill port SCOTT (26875) B.H. fill x -4 m flare

Scott B.H. fill X JIC -4 flare
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$199.00
Fill port SCOTT (26875) B.H. fill x AN800-3
00BLT-1024-04Fill port SCOTT (26875) B.H. fill x AN800-3

Scott B.H. fill x AN800-3
For experimental Aircraft.
Any application on a certified Aircraft would require a field approval.

$189.00
AN-800-3 Cap and Chain
0CP01-0100-01AN-800-3 Cap and Chain

Replacement AN 800-3 cap and chain (brass).

$25.00
Scott Cap and Chain
0CP02-0103-01Scott Cap and Chain

Replacement Scott cap and chain (brass).

$45.00
Valve Core, Schrader, HP
00VEN-0041-00Valve Core, Schrader, HP

High-pressure valve core.

$2.00
Fill Station Repair Kit
KM100-1010-01Fill Station Repair Kit

Fill station service kit.

$30.60
