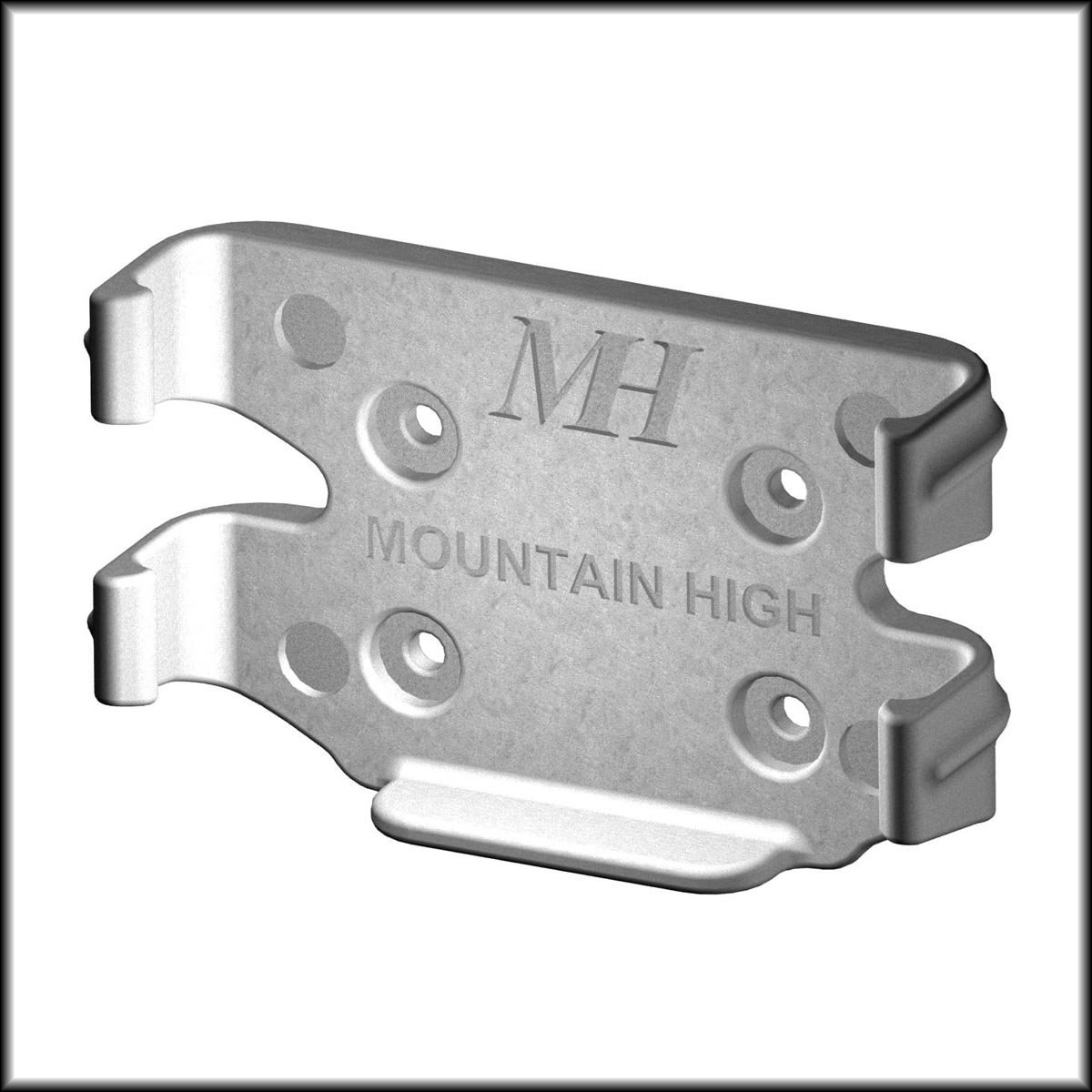

The O2D2 mounting bracket is designed to attach to the O2D2 for the ease of mounting.

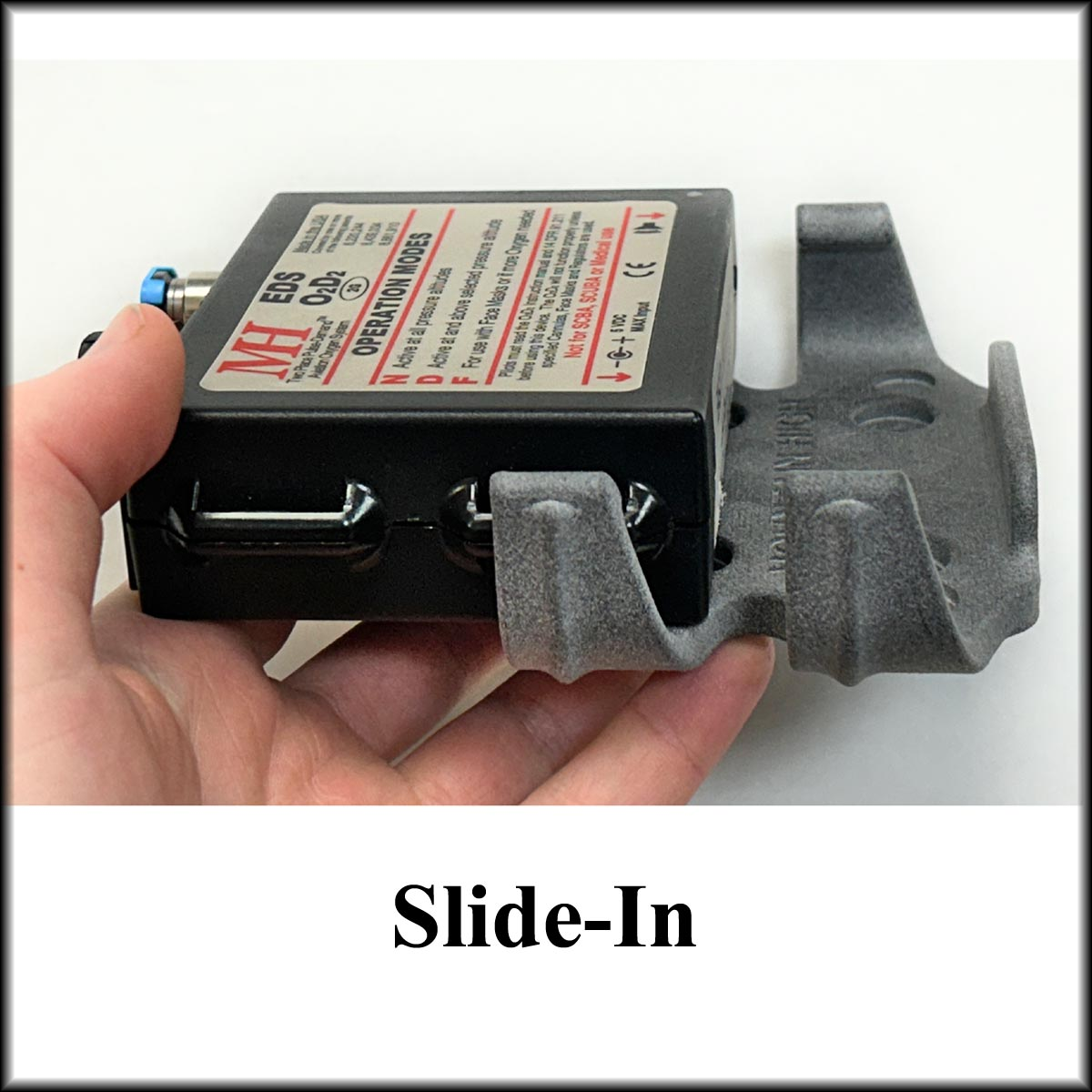

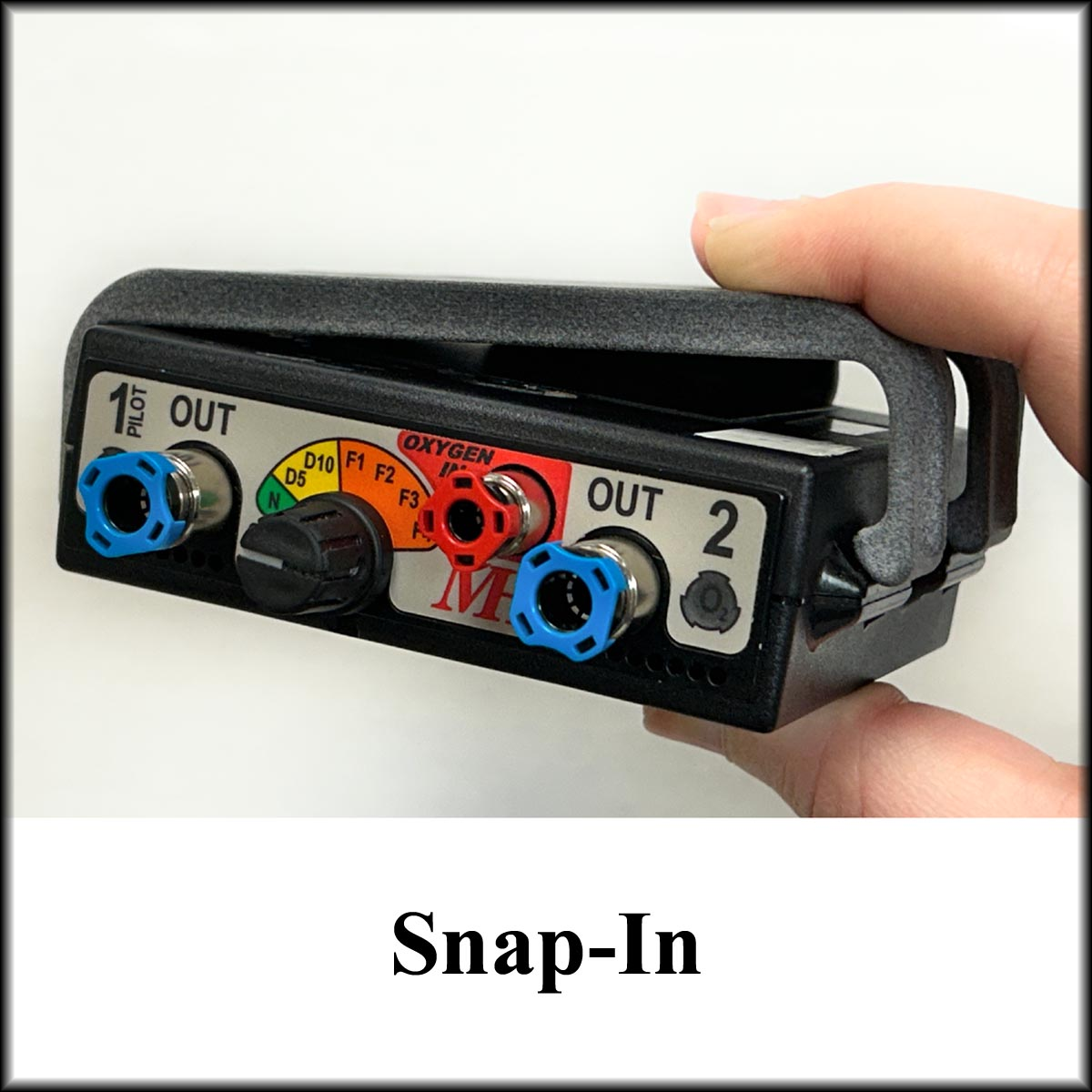

The O2D2 can be attached to the bracket by either sliding it in from the front or snapping in from the top.

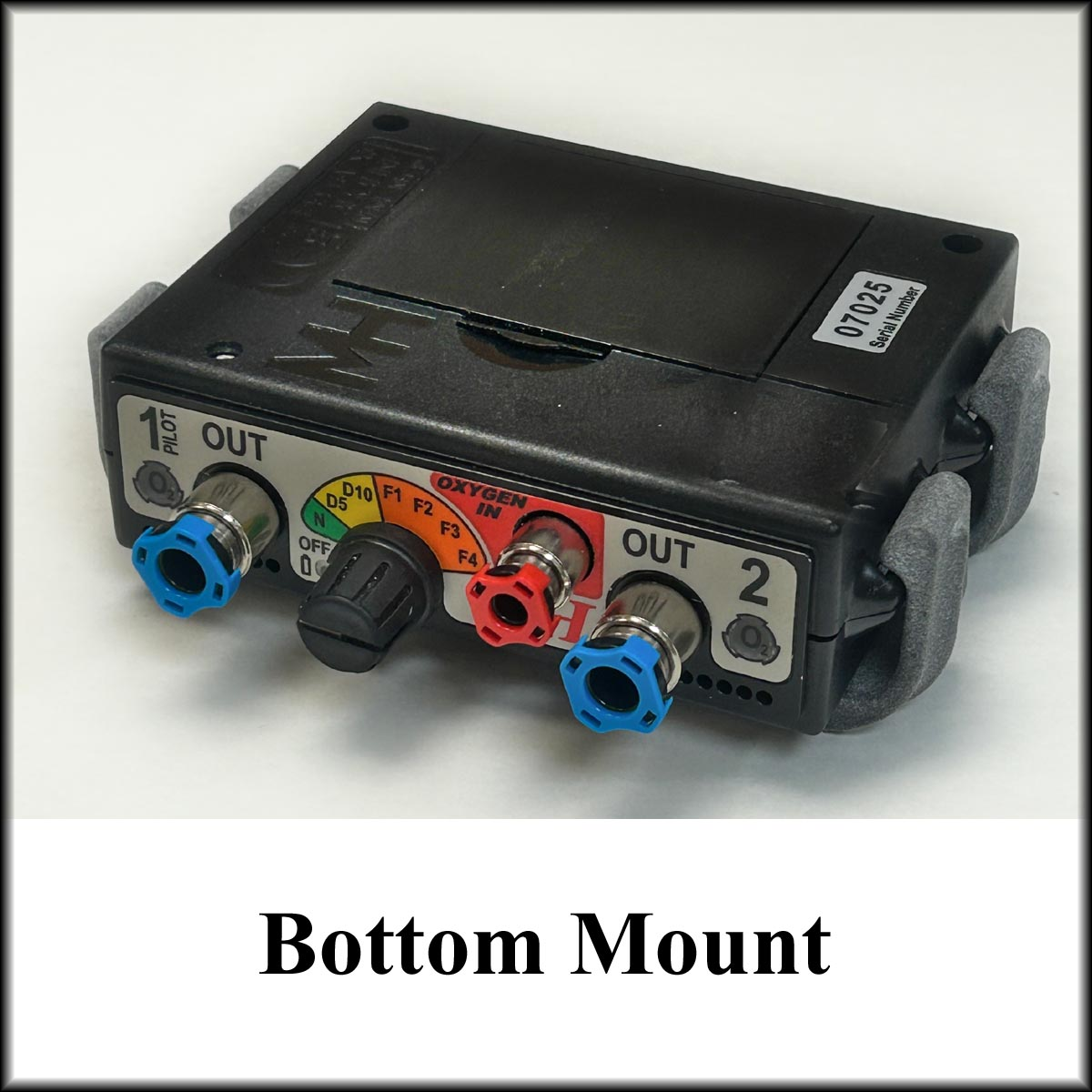

The bracket may be mounted above or to the underside of a mounting surface to provide easy access to the O2D2.
Four holes are provided for the ease of mounting. Mounting may also be accomplished by mounting with a Ram type ball or our 3-M Dual-Lock adhesive strips.
https://www.mhoxygen.com/product/3m-dualock-hookloop-fastener-2-25/
This Mounting Bracket is 3D printed from Nylon for strength and durability.
AN526C-1032Rxx is the recommended mounting machine screw.
Lock Nuts recommended.
