Oxygen Regulators: DIN 477-9 (European standard)

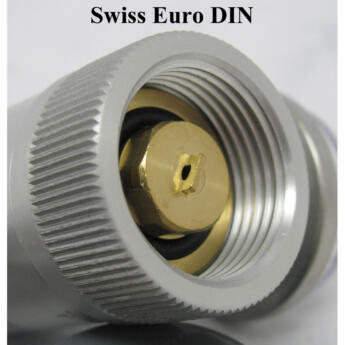

DIN 477-9 is the standard fitting for the attachment of a compressed gas cylinder to the required regulator or transfer line in Europe.

Regulator Features Include:
Constant lock-up, flowing pressure range and large flow reserve throughout the pressure charge range of the cylinder. Light weight aluminum body with oxygen compatible brass and seat materials in the critical wetted regulating/throttling high-pressure areas.

Wide operating temperature range. -20 to +50 C:
Special flat-wire Wave-Helix spring design complements the gas dynamics and aging characteristics of the inlet seat to provide lock-up to dynamic pressures that are unusually tightly matched for a piston type regulator design throughout its service life.

Our unique Crown and seat design provides very fast lock-up response times with an oscillation-free high flow factors specifically designed for use with pulse demand systems.
All of our high pressure oxygen regulators are designed and built by Mountain High in the USA.



DIN-477-9

ImageSKUNameSummaryPriceBuy
00REG-1034-02XCR Regulator (DIN-477)(No-gauge)

XCR-DIN-1P Axial  No/Gauge (NEW EURO).

$255.00

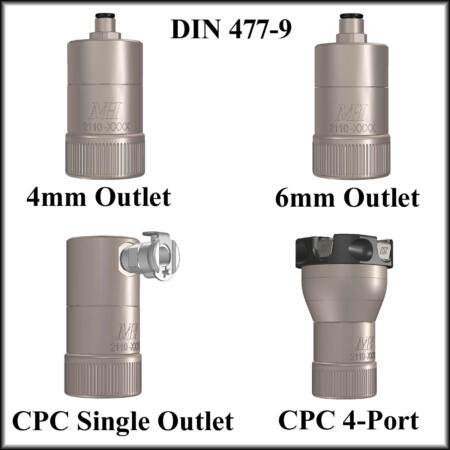

00REG-2110-Regulator, Assy-2G, 2110 Series DIN-477-9 (Non-Gauged w/Port)

New, second generation series (2G) DIN Non-Gauged Regulator
3,000 psi (207 bar) rated

$305.00$519.00

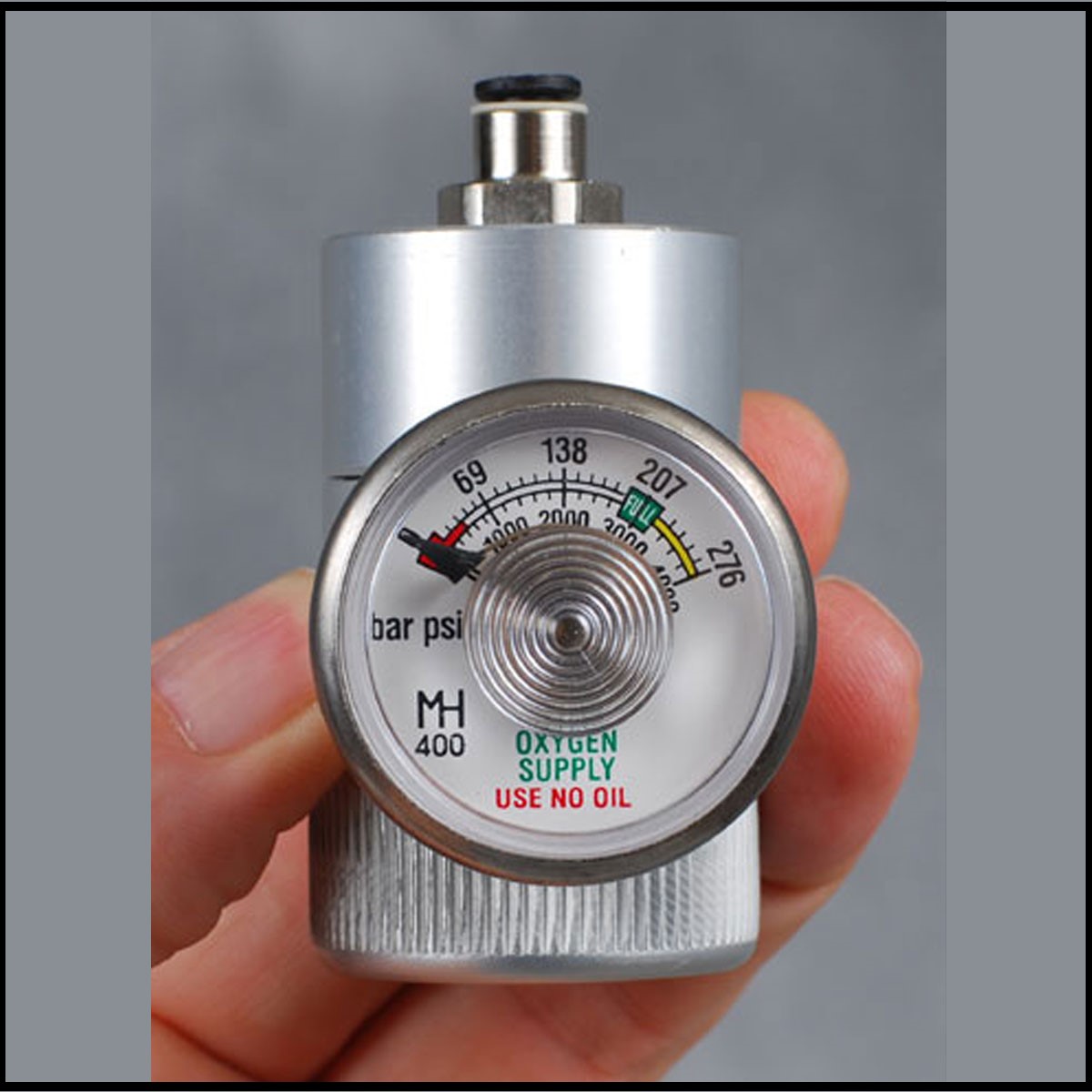

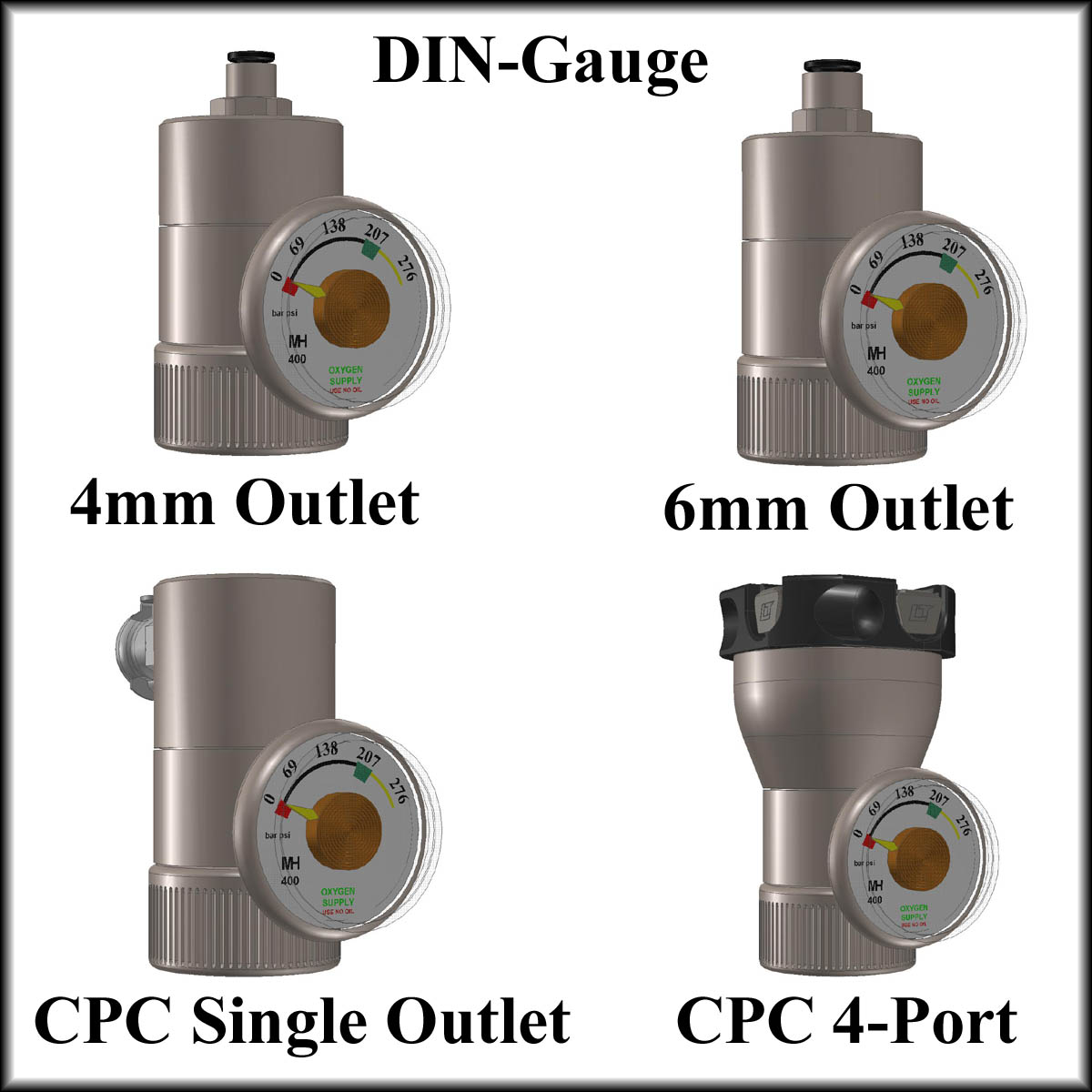

00REG-2111Regulator, Assy-2G, 2111 Series DIN-477-9 Gauged

New, second generation series (2G) DIN Gauged Regulator

$315.00$529.00

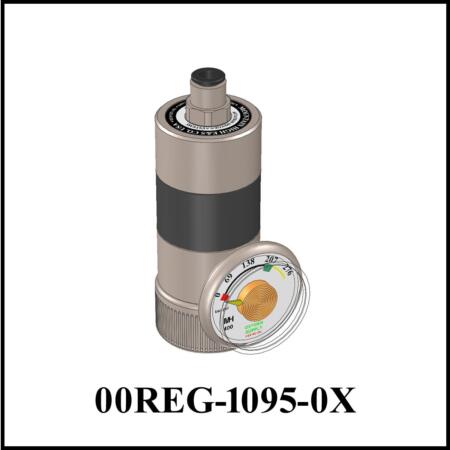

00REG-1095Regulator DIN 477-9 2-Stage Axial Gauge

DIN 477-9 (Euro) 2-Stage Gauge Axial Regulator 4mm or 6mm.



$395.00

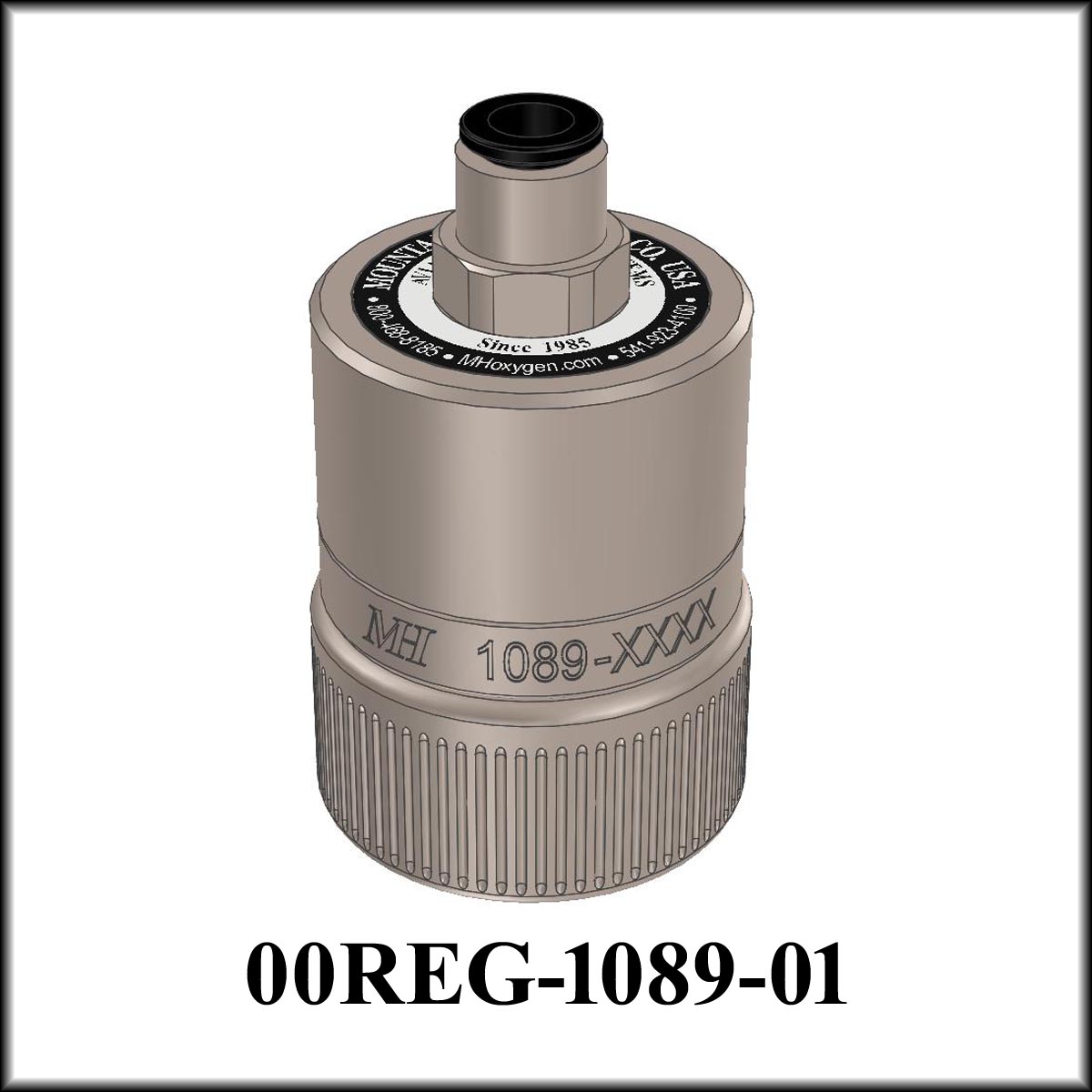

00REG-1089-01Regulator, High Pressure/High Flow DIN 477-9

High Pressure-High Flow, XCR-DIN-1P Axial  No/Gauge (NEW EURO).

This is a Build-to-Order item.

$265.00
