Transfill Adapters: Aircraft Fill

The North American Industry Standard for oxygen fittings are called ‘CGA-540’ (Compressed Gas Assn. fitting No.540). Aircraft with built-in oxygen systems do not usually use the heavy fittings, instead special lighter weight fill fittings have been developed. We have transfiller fittings for easy refilling your built in system from standard CGA-540 oxygen systems. The adapters shown are for the Aircraft fillers. The (N) is for ‘Nipple’ and the (S) is or ‘Socket’ on the CGA-540 end.An industrial cylinder has a socket. Micro particle filters are used and an O-ring is on the 540 nipple for an airtight fit by hand.



Transfill Adapters, Aircraft Fill

ImageSKUNameSummaryPriceBuy
00GSE-1000-00TA-380-N Transfiller Adapter

TA-380-N, Adapts CGA-540 to the AN-800 (3/8-24) fitting .

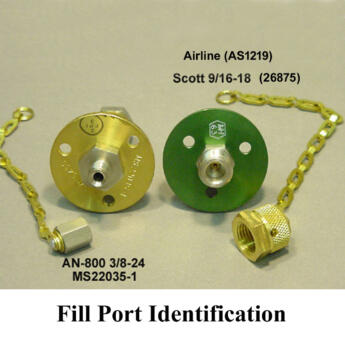

Commonly known as the MS22066 and MS22035 filler ports. A nut and nipple is on the CGA-540 end to attach to transfiller lines.

$146.00
00GSE-1002-00TA-380-S Transfiller Adapter

TA-380-S, Adapts CGA-540 to the AN-800 (3/8-24) fitting .
Commonly known as the MS22066 and MS22035 filler ports. A socket is on the CGA-540 end to attach to transfiller lines. This is our most common adapter.

$149.00
00GSE-1004-00TA-916-S Transfiller Adapter

TA-916-S, Adapts CGA-540 to the Scott fitting (9/16-18 threads). Commonly known as the Scott 26875, 5020-1Airline or AS1046 fitting.A socket is on the CGA-540 end to attach to transfiller lines.

$186.00
00GSE-1026-00TA-916-N/Scott Transfiller Adapter

TA-916-N, Adapts CGA-540 to the Scott fitting (9/16-18 threads). Commonly known as the Scott 26875, 5020-1Airline or AS1046 fitting. A nut and nipple is on the CGA-540 end to attach directly to cylinders.

$179.00
00GSE-1037-01Transfill Adapter, (AN800-SCT) 3/8-24 to 9/16-18, w/AN-800 cap

Scott (FM) Nipple to AN-800(M) Socket Transfill Adapter

$109.00
00GSE-1038-00Transfill Adapter, 1/8 NPT-M To 9/16 Scott Adp.

9/16 Scott Adapter (FM) Nipple to 1/8 NPT-M Transfill Adapter

$90.25
00GSE-1039-XXTransfill Adapter, JIC-4 to AN-800 nipple

JIC-4 To AN-800 Nipple Transfill Adapter

$99.00$110.00
00GSE-1040-00Transfill Adapter 1/8 NPT (M) to AN-800 nipple 3"

transfill adapter 1/8 NPT (M) to AN-800 nipple 3″

$79.00
00GSE-1041-00Transfill Adapter, JIC-5 to AN-800 nipple, 3 in. Length.

JIC-5 to AN-800 Nipple Transfill Adapter

$93.00
00GSE-1042-00Transfill Adapter, 1/4 NPT-Male to AN-800 nipple, 3 in.

1/4 NPT Male to AN-800 Nipple Transfill Adapter

$92.00
00GSE-1043-02Transfill Adapter, JIC-4 to 9/16 Scott

JIC-4 to 9/16 Scott Transfill Adapter

$120.00
00GSE-1052-0XTransfill Adapter, 9/16-18 UNF socket to AN-800 nipple

One side is the  9/16-18 UNF Socket and the other end is the AN-800 (3/8-24) Nipple.

Available in (2) lengths

$85.00$86.00
00GSE-1098-01Transfiller Accessory, Grip Knob Tube Wrench

A must have tool!
MH – Transfill Nut-Driver Wrench

$49.00
Custom Applications

We have our own brazing & silver-soldering facility.

Using the 3/16″ copper tubing we can make most custom applications that you might need.

Call for pricing and availability.
