Compression Fittings

Compression fittings for 1/8″ and 3/16″ Copper tube.
All Compression fittings include Ferrule’s and Nut.

NOTE: Many fittings are becoming unavailable in Brass.
In this case we are substituting the Brass with Stainless Steel.
Also pricing has skyrocketed.
(MHO)

5IHDW-0100-00$-3 [00HDW-0xxx-xx]

High-Pressure Copper Tubing and Compression Tube Fittings, Customer Drawing, For Part Numbers: 19605-0002-00, 19606-0003-00

File size: 622.25 KB

Version: -3

Sort by Default

Display 50 Products per page

Compression Fittings (List View)

SKU	Name	Summary	Price	Buy
00HDW-0104-01	SAE-2-M to 1/8 Compression, Stainless Steel	S.S. SAE-2-M to 1/8″ compression fitting. Currently we are unable to source this fitting in brass.	$15.95	SAE-2-M to 1/8 Compression, Stainless Steel quantity
00HDW-0108-01	SAE-4-M to 1/8" Compression, Stainless Steel	S.S. SAE-4-M to 1/8″ compression fitting. Currently we are unable to source this fitting in brass.	$81.00	SAE-4-M to 1/8" Compression, Stainless Steel quantity

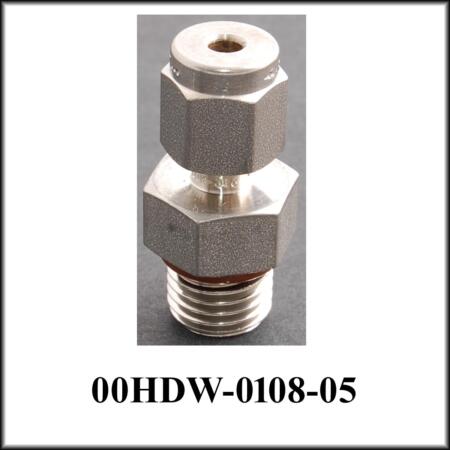

00HDW-0108-05	SAE-4-M To 1/8 Compression, (S.S.), with Filter	SAE-4-M to 1/8″ compression fitting with filter (stainless steel). Filter highly recommended to keep debris out of your regulator.	$91.00	SAE-4-M To 1/8 Compression, (S.S.), with Filter quantity

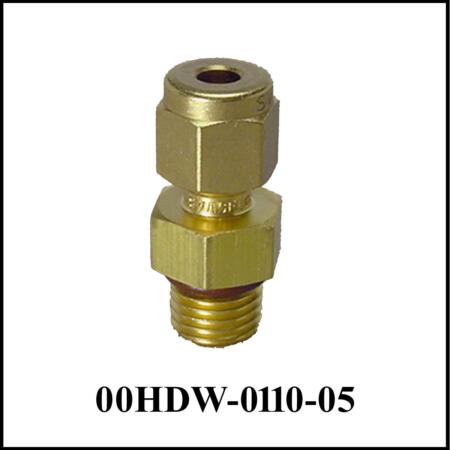

00HDW-0110-05	SAE-4-M to 3/16 Compression with Filter, Brass	Brass SAE-4-M to 3/16″ compression fitting with Filter. Filter highly recommended to keep debris out of your regulator.	$80.00	SAE-4-M to 3/16 Compression with Filter, Brass quantity
00HDW-0110-00	SAE-4-M to 3/16 Compression, Brass	Brass SAE-4-M to 3/16″ compression fitting.	$65.00	SAE-4-M to 3/16 Compression, Brass quantity
00HDW-0118-00	1/8 NPT-M to 1/8 Compression, Brass	Brass 1/8″ NPT-M to 1/8″ tube compression fitting.	$24.00	1/8 NPT-M to 1/8 Compression, Brass quantity
00HDW-0120-00	Tube Fitting 1/8 NPT-F to 1/8 Compression, Brass	Brass 1/8″ NPT-F to 1/8″ tube compression fitting.	$30.00	Tube Fitting 1/8 NPT-F to 1/8 Compression, Brass quantity
00HDW-0122-01	Tube Fitting 1/8 NPT-M to 3/16" Compression, Stainless Steel	S.S. 1/8″ NPT-M to 3/16″ tube compression fitting. Currently we are unable to source this fitting in brass.	$35.00	Tube Fitting 1/8 NPT-M to 3/16" Compression, Stainless Steel quantity
00HDW-0124-01	Tube Fitting 1/8" NPT-F to 3/16" Compression, Stainless Steel	S.S 1/8″ NPT-F to 3/16″ tube compression fitting. Currently we are unable to source this fitting in brass.	$42.00	Tube Fitting 1/8" NPT-F to 3/16" Compression, Stainless Steel quantity
00HDW-0134-00	Tube Fitting 1/4" NPT-M to 1/8" Compression, Brass	Brass 1/4″ NPT-M to 1/8″tube compression fitting.	$29.00	Read more

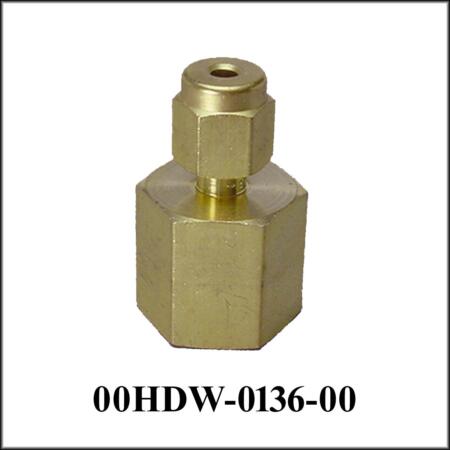

00HDW-0136-00	Tube Fitting 1/4 NPT-F to 1/8 Compression, Brass	Brass 1/4″ NPT-F to 1/8″ tube compression fitting.	$20.00	Tube Fitting 1/4 NPT-F to 1/8 Compression, Brass quantity
00HDW-0138-00	Tube Fitting 1/4 NPT-M to 3/16, Brass	Brass 1/4″ NPT-M to 3/16″ tube compression fitting.	$25.00	Tube Fitting 1/4 NPT-M to 3/16, Brass quantity
00HDW-0145-00	Tube Fitting 1/4 NPT-F to 3/16, Brass	Brass 1/4″ NPT-F to 3/16″ tube compression fitting. Non stocked, special order item.	$82.00	Read more
00HDW-0150-00	Elbow 1/8 NPT-M to 1/8, Brass	Brass elbow 1/8″ NPT-M to 1/8″ compression fitting.	$35.00	Elbow 1/8 NPT-M to 1/8, Brass quantity
00HDW-0154-00	Elbow 1/8 NPT-M to 3/16, Brass	Brass elbow 1/8″ NPT-M to 3/16″ compression fitting.	$25.00	Elbow 1/8 NPT-M to 3/16, Brass quantity
00HDW-0152-00	Elbow 1/8 NPT-F to 1/8, Brass	Brass elbow 1/8″ NPT-F to 1/8″ compression fitting.	$40.00	Elbow 1/8 NPT-F to 1/8, Brass quantity

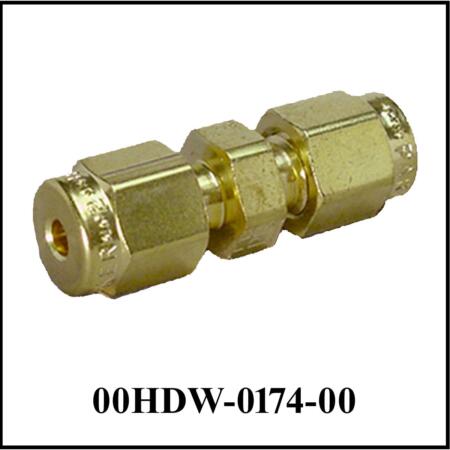

00HDW-0174-00	Tube Union 1/8 to 1/8, Brass	Brass tube union 1/8″ to 1/8″ compression fitting.	$27.00	Tube Union 1/8 to 1/8, Brass quantity

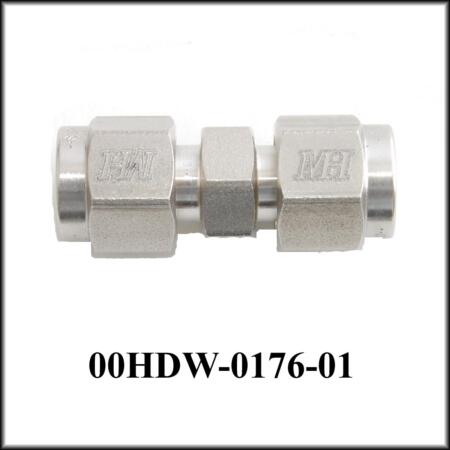

00HDW-0176-01	Tube Union 3/16 to 3/16, SS	Brass tube union 3/16″ to 3/16″ compression fitting. No longer available in brass, we have switched to stainless steel.	$30.00	Tube Union 3/16 to 3/16, SS quantity
00HDW-0182-00	Tube Union 1/8 to 1/8 BH, Brass	Brass bulkhead union 1/8″ to 1/8″ compression fitting.	$21.00	Tube Union 1/8 to 1/8 BH, Brass quantity

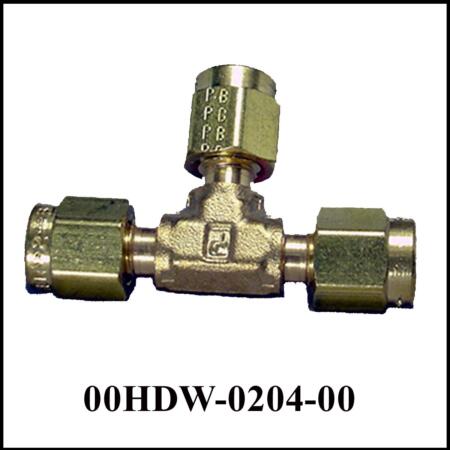

00HDW-0204-00	Tee Union 1/8-in. 3-Way, Brass	Brass tee 1/8″ tube, 3-way compression fitting.	$45.00	Tee Union 1/8-in. 3-Way, Brass quantity

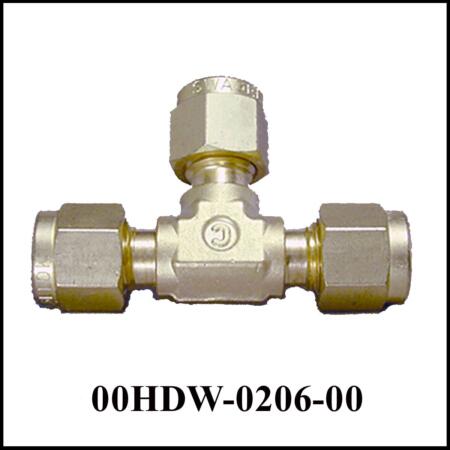

00HDW-0206-00	Tee Union 3/16 in. 3-Way, Brass	Brass tee 3/16″ tube, 3-way compression fitting.	$35.00	Tee Union 3/16 in. 3-Way, Brass quantity
00HDW-0212-00	Ferrule/Amp; Nut Set, 1/8" Compression, Brass	Brass 1/8″ ferrule & nut set compression fitting.	$21.00	Ferrule/Amp; Nut Set, 1/8" Compression, Brass quantity
00HDW-0212-BB	Ferrule Back, 1/8" Compression, Brass	Brass 1/8″ ferrule back compression fitting.	$6.00	Ferrule Back, 1/8" Compression, Brass quantity
00HDW-0212-FB	Ferrule Front, 1/8" Compression, Brass	Brass 1/8″ ferrule front compression fitting.	$5.50	Ferrule Front, 1/8" Compression, Brass quantity
00HDW-0214-00	Ferrule/Amp; Nut Set, 3/16" Compression, Brass	Brass 3/16″ ferrule & nut set compression fitting.	$25.00	Ferrule/Amp; Nut Set, 3/16" Compression, Brass quantity

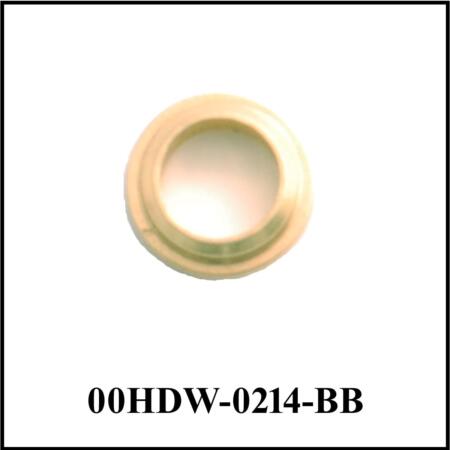

00HDW-0214-BB	Ferrule Back, 3/16" Compression, Brass	Brass 3/16″ ferrule back compression fitting.	$4.50	Ferrule Back, 3/16" Compression, Brass quantity
00HDW-0212-ST	Ferrule Set, 1/8" Compression, Brass	Brass 1/8″ ferrule and ring compression set.	$9.00	Ferrule Set, 1/8" Compression, Brass quantity
00HDW-0214-ST	Ferrule Set, 3/16" Compression, Brass	Brass 3/16″ ferrule and ring compression set.	$9.00	Ferrule Set, 3/16" Compression, Brass quantity
00HDW-0216-00	Ferrule/Amp; Nut Set, 1/8" Compression, Stainless Steel	Stainless-steel 1/8″ ferrule & nut set compression fitting.	$29.00	Ferrule/Amp; Nut Set, 1/8" Compression, Stainless Steel quantity

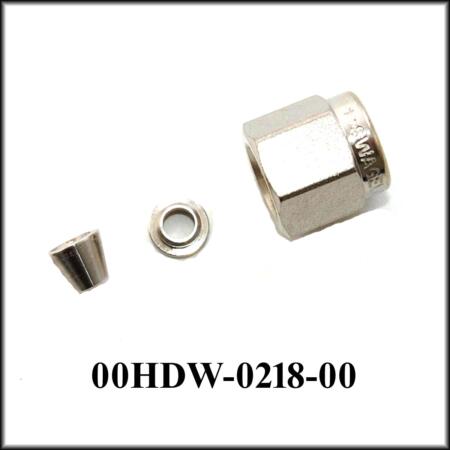

00HDW-0218-00	Ferrule/Amp; Nut Set, 3/16" Compression, Stainless Steel	Stainless-steel 3/16″ ferrule & nut set compression fitting.	$27.95	Ferrule/Amp; Nut Set, 3/16" Compression, Stainless Steel quantity
