Our lighted electric instrument-panel-mountable cylinder pressure gauges come in two sizes. The EPG-601a fits standard 1.25″ cutout. The EPG-600a fits a standard 2.25″ instrument hole. Both allow you to place the gauge anywhere you desire without the concern for the high-pressure line from the cylinder. The gauges have a precision sin/cosin air core coil movement for ruggedness and accuracy through a wide voltage range (10 to 28 VDC). A small DE-09 connector on the rear of the gauge supplies all the connections needed. Lighting is internal with optional or existing EL-strip-lighting power supply. The EPSU600 2-wire (4-20 ma.current-loop) electric pressure sending unit has a SAE-4 boss. It can be mounted directly to the RCV/RVR, IPR, PCR regulators or our SAE manifolds. They can be used with any 4-20 ma. (0-3000 psi) current loop sending unit.

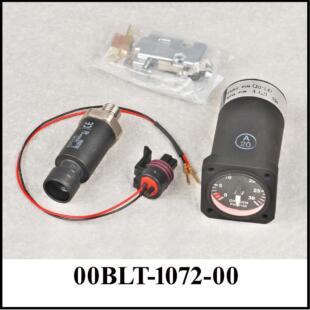

Kit, 1.25 (EPG601) Gauge w/Transducer
$699.00
EPG-601A (1.25″) gauge and transducer.
5IEG6-0051-00$E
UMA Electronic O2 Pressure Gauge Electrical Configuration Insert (Customer Drawing, 0EPG6-051-000$E) For Models: EPG-601A, EPG-600A Part Numbers: [00BLT-1072-00, 00BLT-1074-00, 00CPG-1012-00, 00CPG-1014-00]
5IEG6-0051-01$D
1.5in Oxygen Gauge Form Factor (Customer Drawing, 0EPG6-051-001$D) For Model: EPG-601A Part Numbers: [00BLT-1072-00, 00CPG-1012-00]
Electronic Oxygen Gauges, Internal Electrical Schematic
(Customer Drawing, 0EPG6-051-003$C)
For Models: EPG-601A, EPG-600A
Part Numbers: [00BLT-1072-00, 00BLT-1074-00, 00CPG-1012-00, 00CPG-1014-00]
5IEG6-0051-03$C
5IEG6-0051-04$A
Oxygen E-Gauge, Data Sheet (Customer Drawing, 0EPG6-051-004$A) For Models: EPG-601A, EPG-600A Part Numbers: [00BLT-1072-00, 00BLT-1074-00, 00CPG-1012-00, 00CPG-1014-00]
