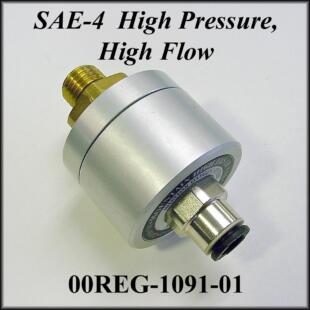

This High Pressure High Flow pressure regulator uses the SAE-4 inlet connector to attach to outlet valves and manifolds using this thread port.
This series it is also useful as a compact regulator that can be attached to a high pressure manifold for use down stream of the cylinder. This is useful where a limited space for the cylinder mounting is involved. It can also be mounted behind a panel or used on a manifold or valve where multiple pressure regulators are required. This model comes standard with the 6mm Push-to-Connect outlet. It is available with multiple outlet options on request such as a JIC-4 fitting.
This is a special custom build to order (BTO) item.
The your outlet specifications.
Outlet pressures can be set from 40 psi to 65 psi Dynamic (2.7-4.5 Bar) depending on your specification requirements.
High Flow rates achieved are between 120 and 190 L/min.
This is a call to order item.
