How do vented and non-vented regulators differ?
When the pressure downstream of a vented regulator exceeds the set pressure by some amount (this varies based on the regulator) that excess pressure vents out the regulator into the atmosphere. Alternately, a non-vented regulator will not vent excess pressure downstream of the regulator.

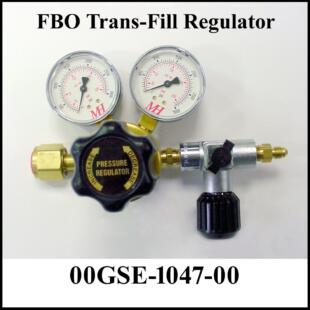

First of all, this high-quality regulator, valve and gauge combination allows Fixed Base Operators (FBOs) to safely and efficiently fill the oxygen systems of the airplanes they service. However, this non-venting regulator does not come supplied with a flex hose or adapters. We supply these separately. To order a complete kit with an assortment of adapters and flex hose, order item 00GSE-1050-08.
In addition, our system also incorporates built-in filters as well as a flow restrictor to prevent filling too fast.
All Components are cleaned and ready for Oxygen use.
For use with CGA-540 Oxygen fitting. The CGA-540 is standard USA configuration.
