The (PCR) pneumatically-controlled regulator built-in system gives the home builder a cost effective way to provide his aircraft with a built-in system.

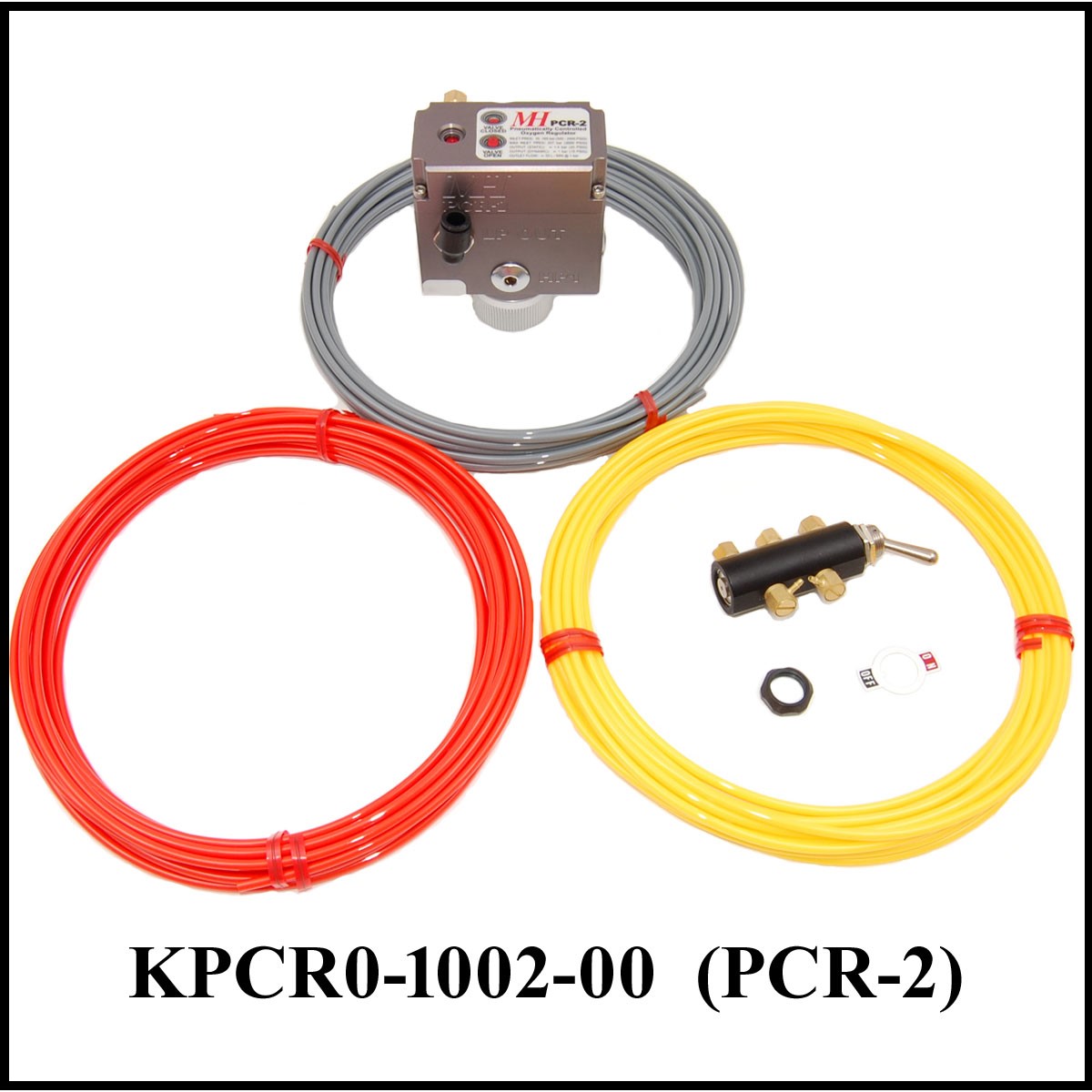

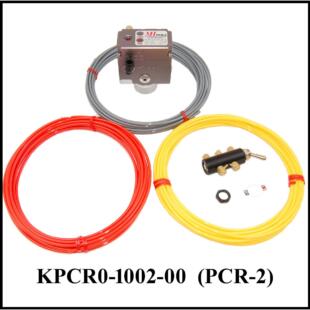

Our new simple to install and simple to operate PCR-2 Oxygen regulator kit is designed for built-in and portable applications. (Although these systems have been designed to meet and exceed FAA TSO and AIR specification, they are not meant for the certified market without an STC or 337.)
The PCR-2 is a self-providing, pneumatically-operated, remote controlled, simple, light-weight regulator. The PCR-2 has the industry standard CGA-540 fitting where it can be fitted onto any cylinder with a CGA-540 valve. The PCR-2 can optionally be ordered with the Euro-norm DIN-477 fitting as well. Either way, you simply remove and replace, by hand and without tools, the PCR-2 to and from the cylinder for refilling. Many of our customers like the PCR-2 because it provides them the ability to remove or exchange the cylinder at a moment’s notice.

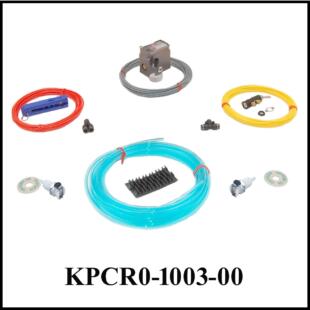

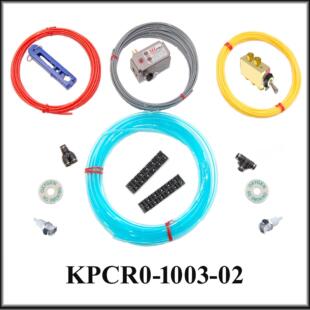

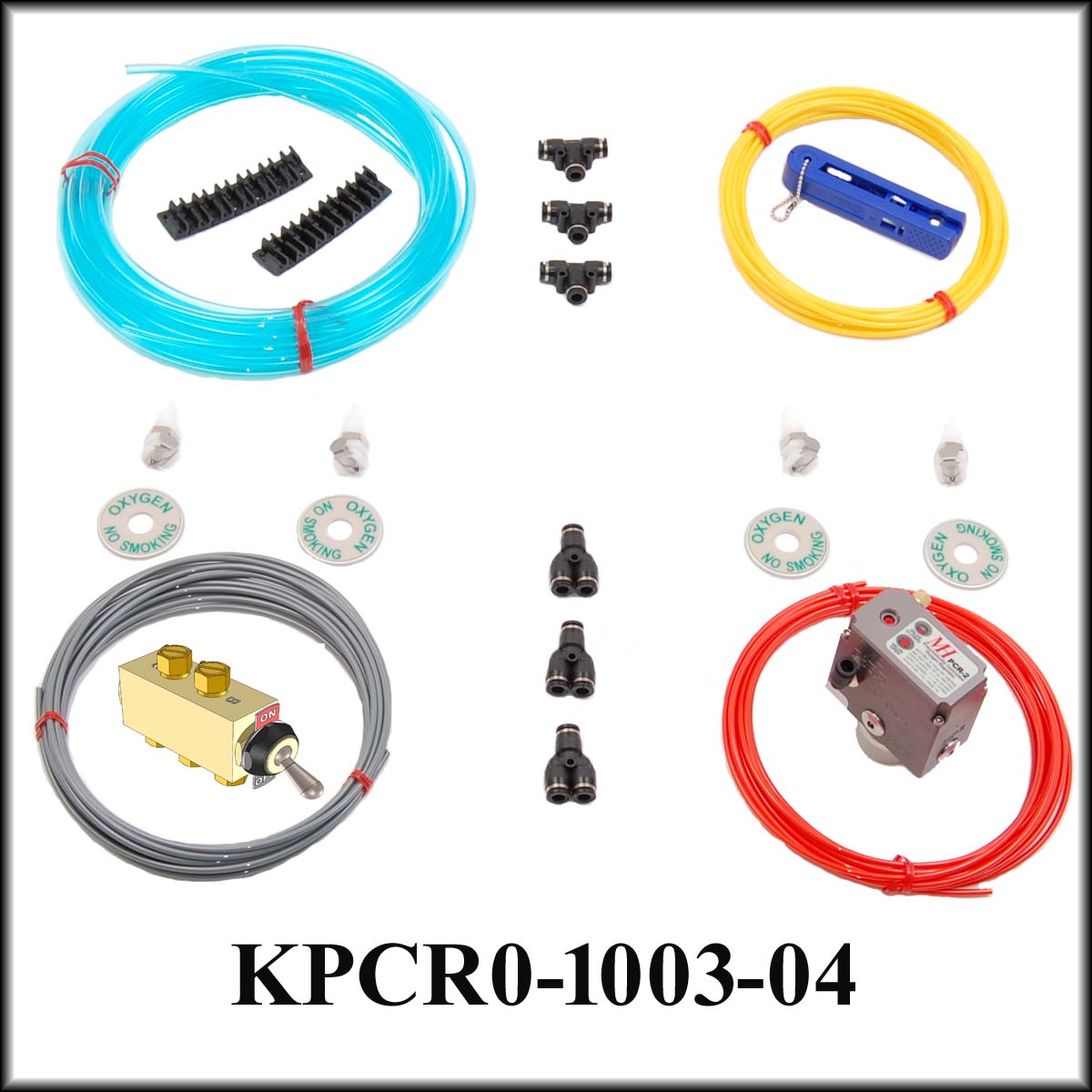

The PCR-2 can be purchased complete with cylinder, or in segments to suit your building schedule. We compiled the PCR-2 kits into the most popular configurations.
The PCR-2 works equally well on pressurized or non-pressurized aircraft due to the unique pneumatic design.
