You asked for it and we made it. Many of our Fixed Base Operators (FBOs) have requested a complete FBO- oxygen filling system with regulator.
Well here it is. We have put together a complete system with everything you need.
The CGA-540 is standard USA configuration.
We start with the regulator.
This High Pressure Oxygen Regulator we found performs the best.
The standard kit comes with a non-venting style regulator.
Or, available upon request at no extra charge, choose a vented-style regulator.
Together with that we have combined our time-proven components.

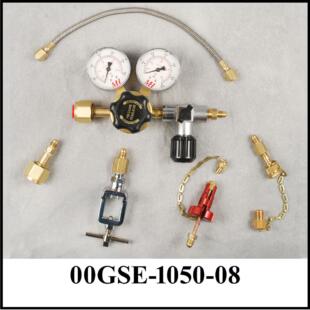

Each FBO-oxygen kit comes with the four most common fill adapters that you will need.
Combine that with a hose length of your choice and you are in business. The standard hose length is 8 feet.
Many of our customers have asked to take the bulk away from the aircraft or fill end. We have moved the bleed valve up near the regulator so now the supply end has far less weight.
However, we can configure your system with the bleed valve at the fill end if you prefer.
We have also gone to a smaller diameter braided hose to reduce weight and facilitate ease of handling.
Our system also incorporates a flow restrictor to prevent filling too fast, as well as built-in filters.
All Components are cleaned and ready for Oxygen use.
For use with CGA-540 Oxygen fitting. Kit includes 4 popular fill adapters.
(1) 00GSE-1039-00, (1) 00GSE-1043-02, (1) 00GSE-1045-00, (1) 00GSE-1046-00
